Sony avx -ax7000 Head Unit

Specifications

Product Highlights

Size & Weight

WEIGHT

2.65 lb

DIMENSIONS (W X H X D)

7.01 x 3.94 x 5.47 inches

General Features

VIDEO OUT

No

PRE OUT

3 Pre 2V

DSO (DYNAMIC STAGE ORGANIZER)

Yes

EXTRA BASS

Yes (Off/1/2)

TIME ALIGNMENT

No

FIRMWARE UPGRADABILITY

Yes

OUTPUT POWER

55 W

AUX-IN

No

ZONE X ZONE

No

USB

Yes (Rear x2)

SUB OUT

Yes

NAVIGATION

No, Yes, via Apple CarPlay or Android Auto

EQUALIZER

10-band Graphic Equalizer

REAR VIEW CAMERA IN

Yes

Tuner Features

PRESET

FM18 / AM12

AUTO MEMORY

BTM

RDS/EON

Yes (RBDS)

CD/DVD Control Feature

DOLBY DIGITAL PLAYBACK (MAIN UNIT)

No

DVD-R / -RW PLAYBACK

No

CD/DVD AUDIO CODEC

No

CD-RW PLAYBACK

No

DVD-VIDEO PLAYBACK (MAIN UNIT)

No

CD / DVD AUDIO PLAYABLE EXTENSION

No

REPEAT / SHUFFLE (MAIN UNIT)

No

CD / DVD VIDEO PLAYABLE EXTENSION

No

DVD-VR PLAYBACK (MAIN UNIT)

No

DVD+R / +RW PLAYBACK

No

VCD PLAYBACK (MAIN UNIT)

No

CD / DVD VIDEO CODEC

No

CD-R PLAYBACK

No

MP3: ID3 TAG INDICATION (VERSION, TITLE /ARTIST / ALBUM)

No

Bluetooth Profile

OPP

No

AVRCP

Yes (1.3)

A2DP

Yes (1.3)

PBAP

Yes (1.1)

HFP

Yes (1.6)

SPP

No

Bluetooth Features

CALL VOLUME LEVEL CONTROL

Yes

RING VOLUME LEVEL CONTROL

Yes

EXTERNAL MICROPHONE

Supplied

SPEED DIAL

Yes (6 memories)

PHONEBOOK (BUILT IN)

No

SIGNAL STRENGTH INDICATION

Yes

ALPHABETICAL PHONEBOOK SORTING

Yes

LAST DIALED CALL

YES (select from the dialed call history)

VOICE DIAL ACTIVATION

No

AUTO ANSWER

No

RECENT CALLS (# OF)

Yes

BATTERY REMINDER

Yes

PHONEBOOK ACCESS VIA PBAP

Yes

Bluetooth Audio Features

META DATA INDICATION

Yes

PAUSE (BLUETOOTH AUDIO)

Yes

TRACK +/-

Yes

REPEAT CONTROL (AUDIO DEVICE SIDE)

Yes

AUDIO CODEC (BLUETOOTH AUDIO)

SBC / AAC

CUE / REV

Yes

SHUFFLE CONTROL (AUDIO DEVICE SIDE)

Yes

AUDIO LEVEL ADJUSTMENT

Yes (-8 dB to +18 dB)

GROUP (FOLDER) +/-

Yes

Panel Design

PANEL DETACHABILITY

No

PANEL SURFACE FINISH COLOR

Black

KEY ILLUMINATION

Yes (White)

Monitor(AVC)

SCREEN DIAGONAL (INCH / CM)

6.95 inch

RESOLUTION (DOT)

800 x 480

CONTRAST RATIO

400

LCD TYPE

TFT Active Matrix, TFT Active Matrix/Capacitive Touch

SCREEN ASPECT

17: 9

DIMMER

Yes

BRIGHTNESS

500 cd/m2

Display Panel

KEY ILLUMINATION INITIAL

Yes (White)

VISUALIZER

No

DIMMER ADJUST

Yes

User Interface

PARKING CONTROL

Yes

REAR VIEW CAMERA-IN MARKER SETTING

Yes

TOUCH PANEL

Yes/Capacitive

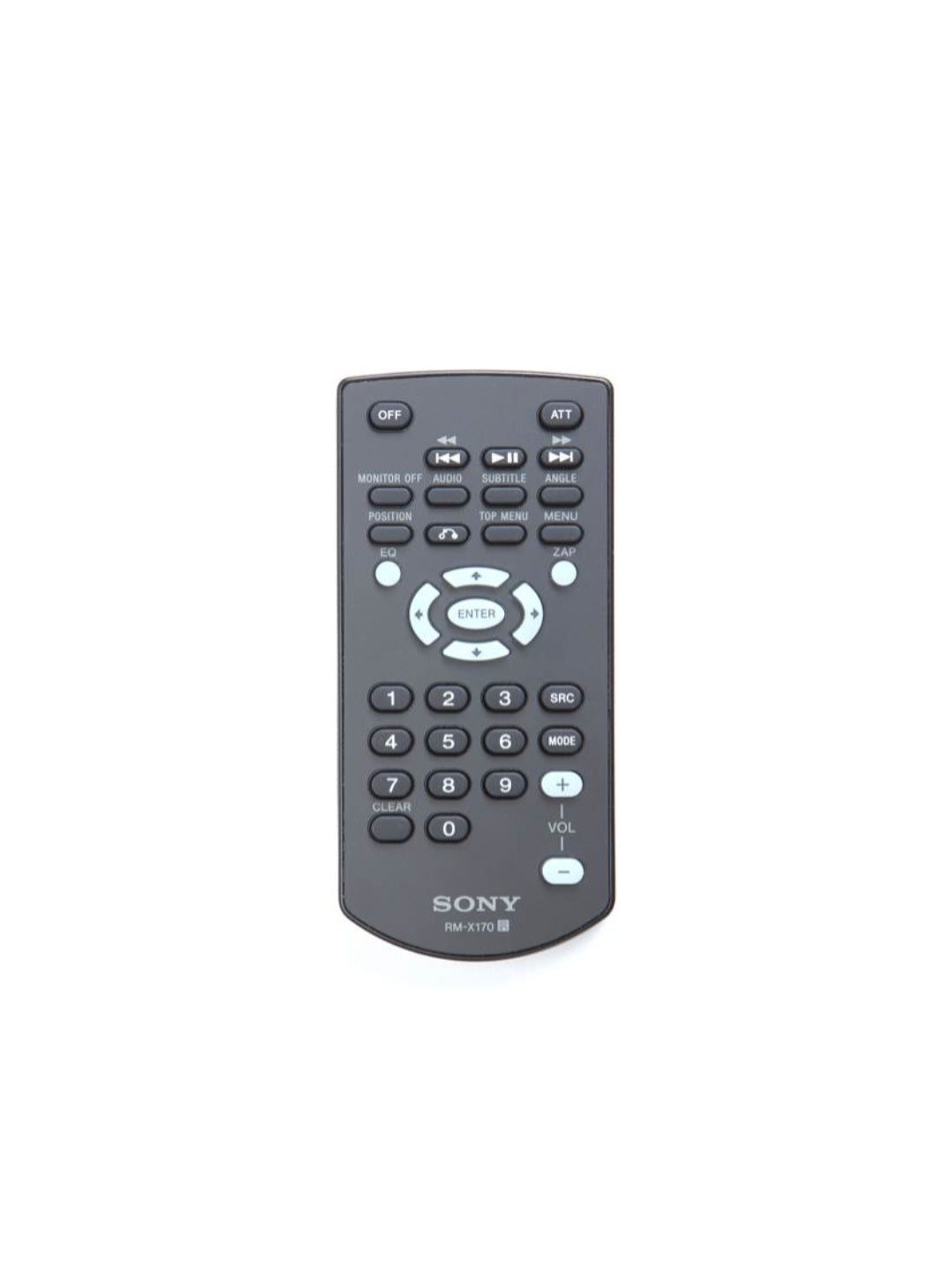

REMOTE COMMANDER

RM-X170

GESTURE COMMAND

Yes

ASPECT RATIO SELECT

Yes
