BULLSEYE BAGGER AUDIO
Hertz audio dsp
Hertz audio dsp
Regular price
$400.00 USD
Regular price
Sale price
$400.00 USD
Unit price
/
per
Couldn't load pickup availability

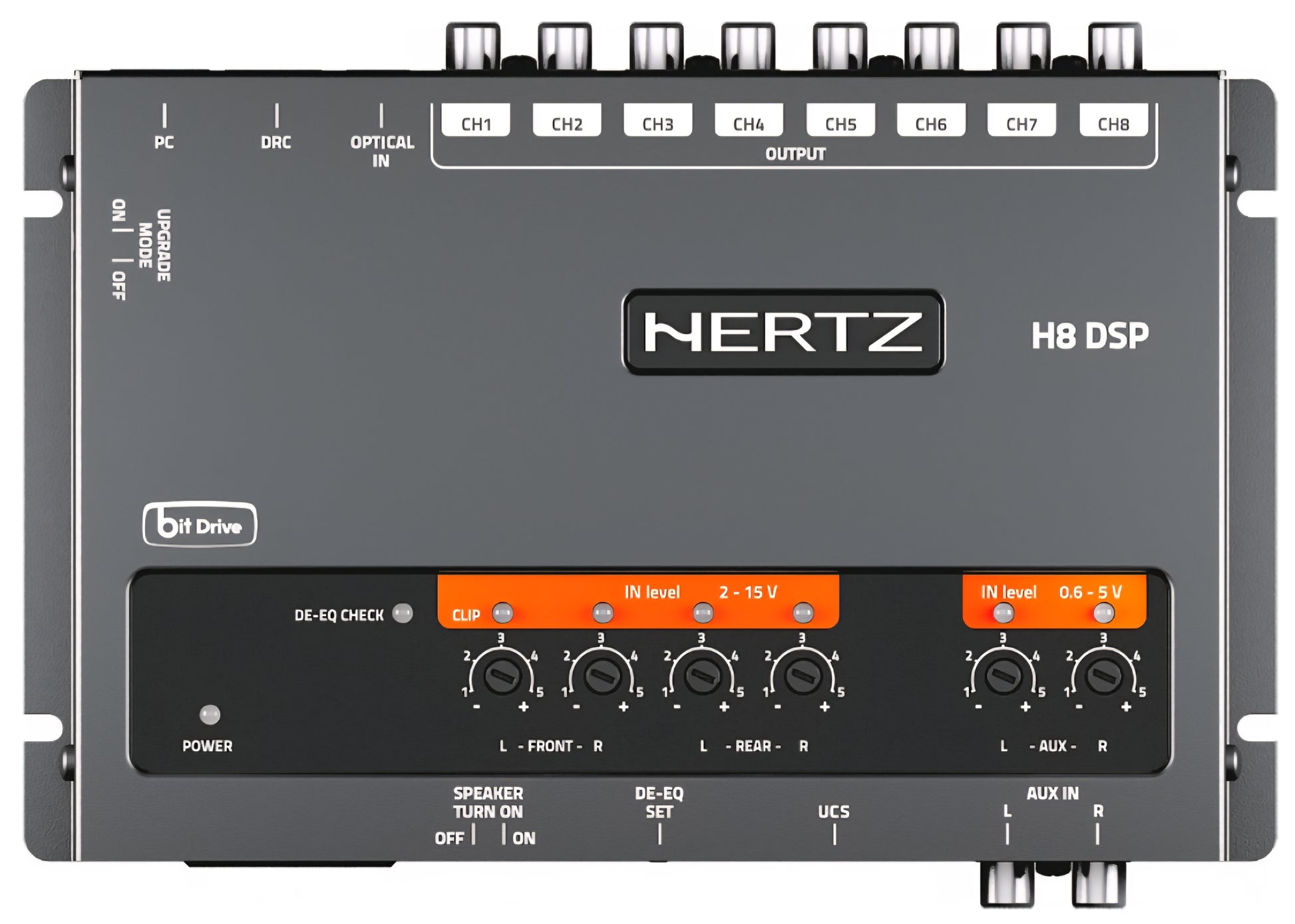

Digital Signal Processor
| INPUT STAGE | |
| Master (Speaker In/Pre in) | FL - FR - RL - RR |
| Aux (Pre in) | Left - Right |
| Digital Optical IN (S/PDIF max 96 kHz/24bit) | OPTICAL IN |
| OUTPUT STAGE | |
| Low Level Pre (default) | FRONT TW L/R, FRONT WF L/R REAR L/R, SUB, CENTER |
| CONNECTIONS | |
| From / To Personal Computer | 1 x USB / B |
| DRC HE | Audio controls and Memory / Inputs selection |
| Optical / AUX select | Optical In / Aux wire control + 12V / GND enable |
| Memory A / Memory B | Memory A / B wire control + 12V / GND enable |
| CROSSOVER N.8 (one for each output channel) | |
| Filter Type | Full / High Pass / Low Pass / Band Pass |
| Filter mode and slope | Linkwitz @ 12 / 24 dB Butterworth @ 6 / 12 / 18 / 24 dB |
| Crossover frequency | 68 steps @ 20 ÷ 20k Hz |
| Phase control | 0° ÷ 180° |
| EQUALIZER | |
| On Hi-Levels input (Speaker In) | Automatic De-Equalization On |
| Outputs | N.8 Graphic: ±12 dB @ 31 Band ISO 1/3 Oct. 20 ÷ 20k Hz |
| TIME ALIGNMENT | |
| Distance | 0 ÷ 510 cm / 0 ÷ 200.8 inch |
| Delay | 0 ÷ 15 ms |
| Step | 0.08 ms; 2,8 cm / 1.1 inch |
| Fine set | 0.02 ms; 0,7 cm / 0.27 inch |
