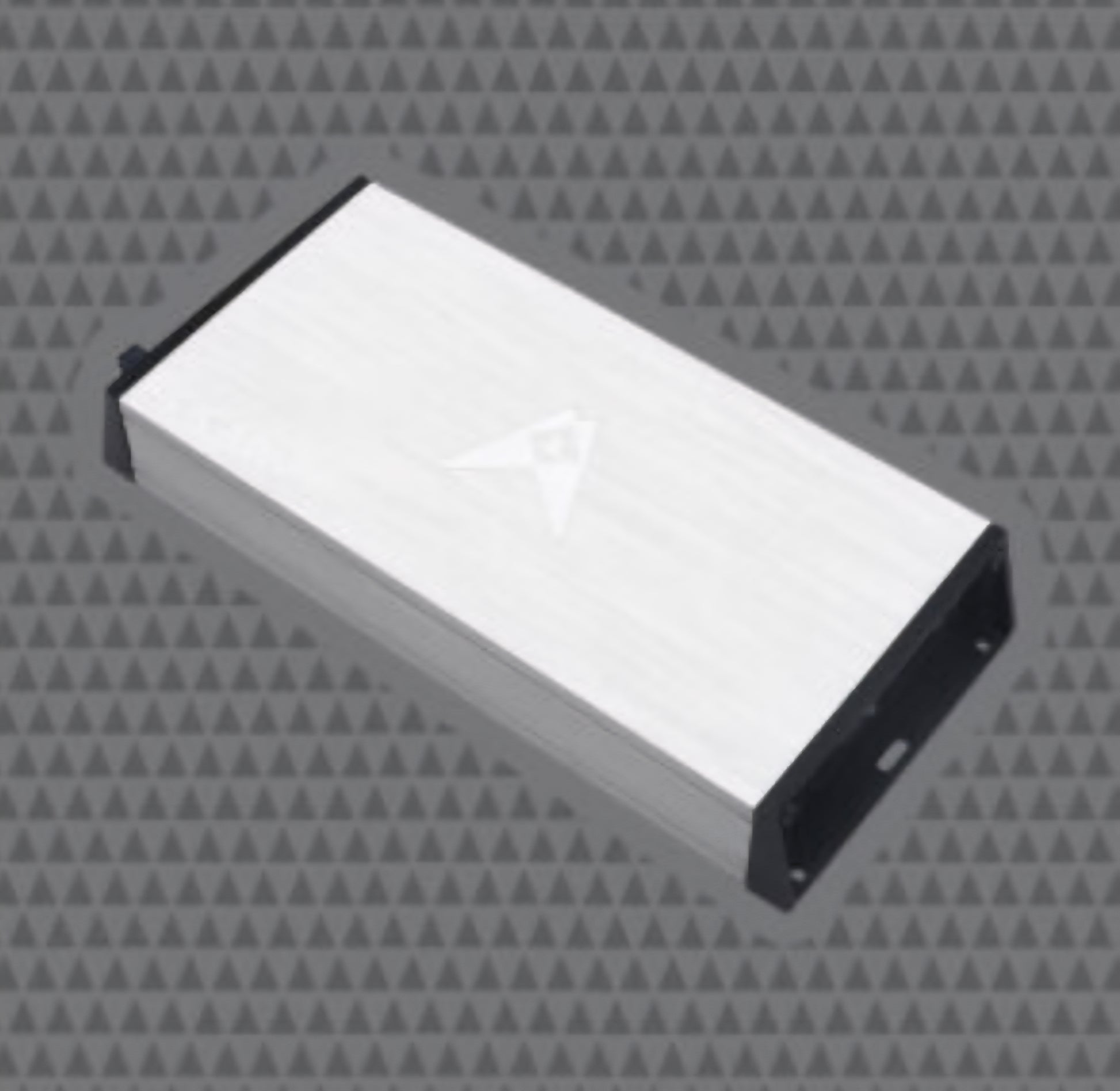

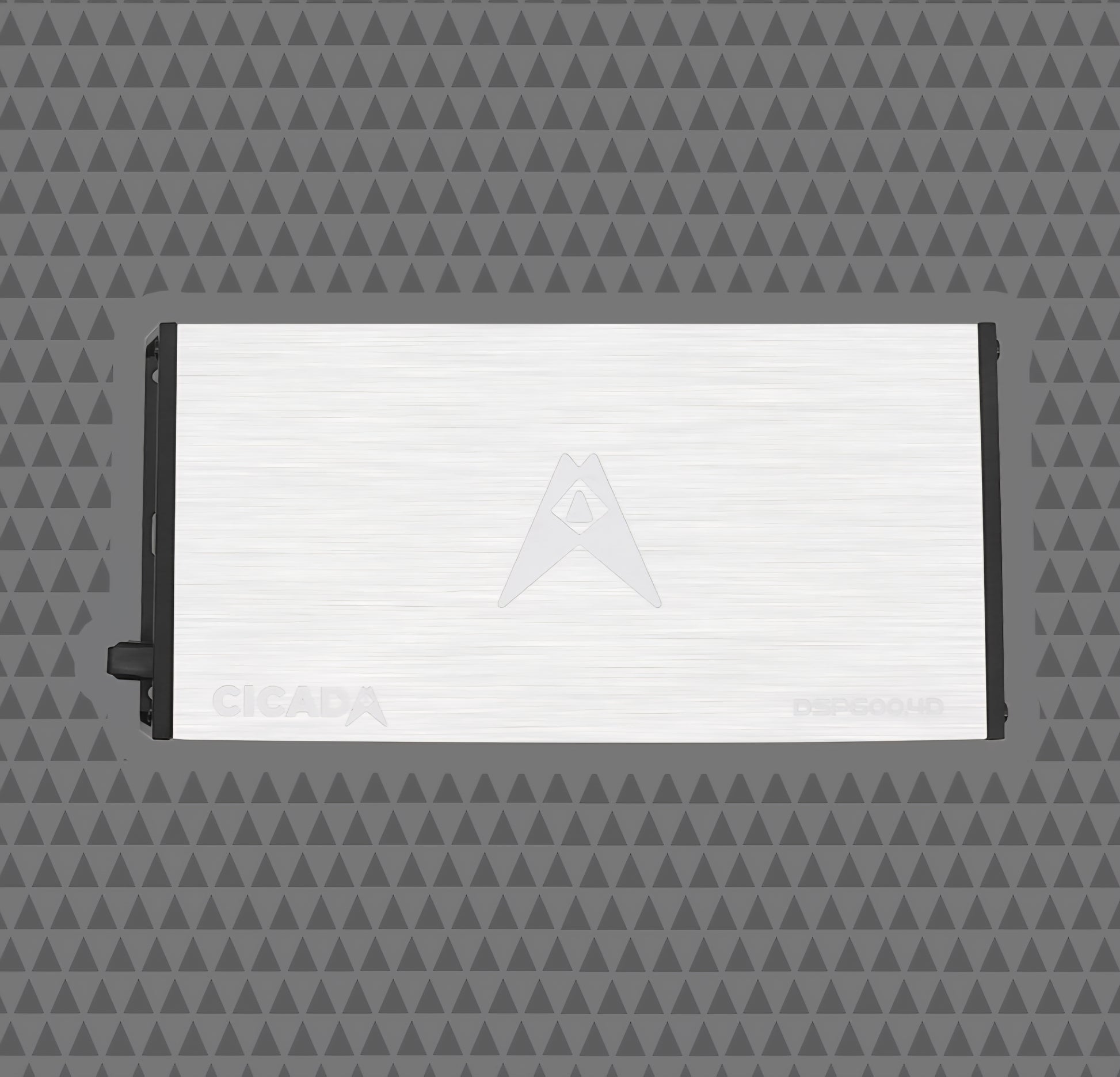

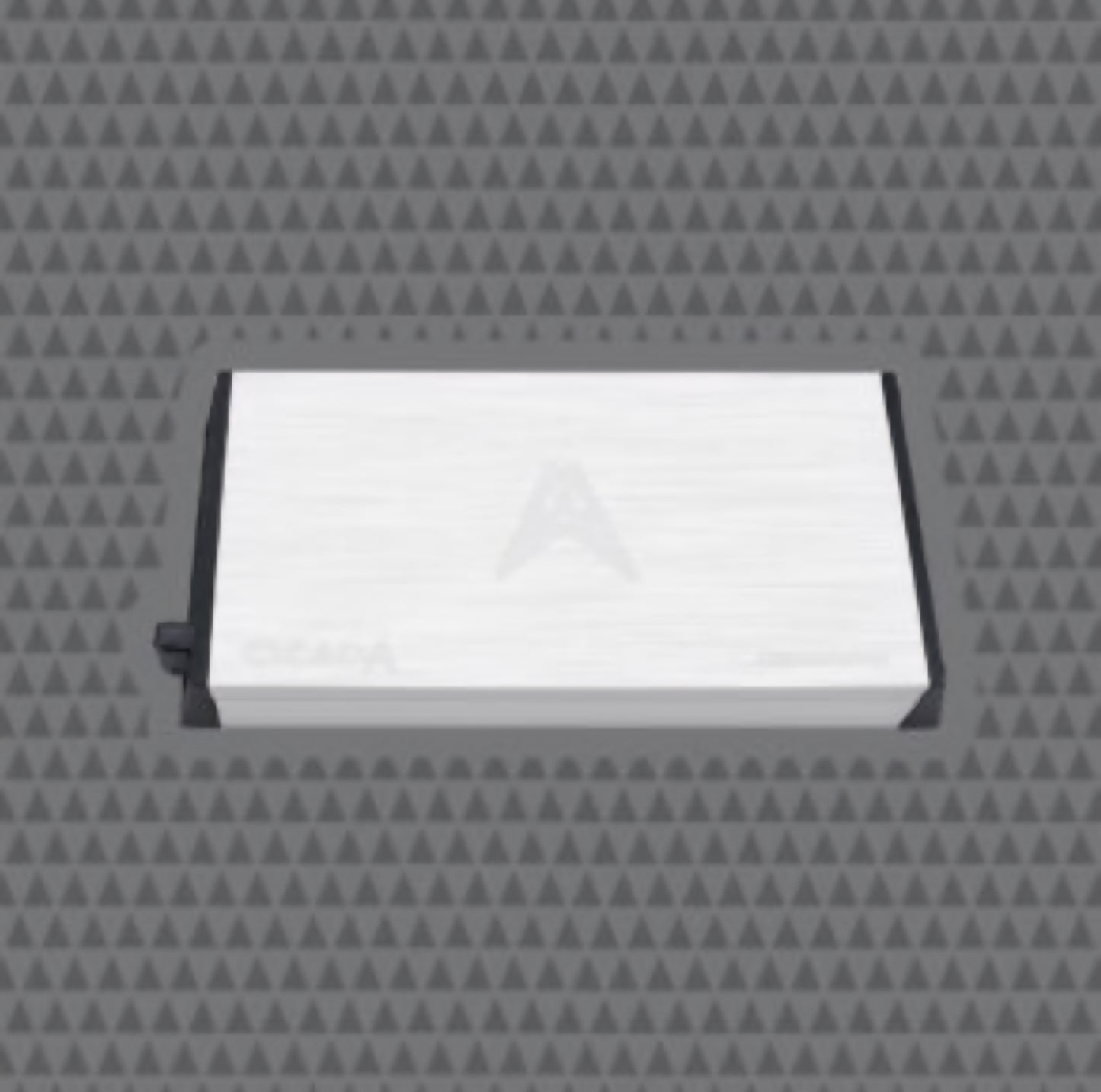

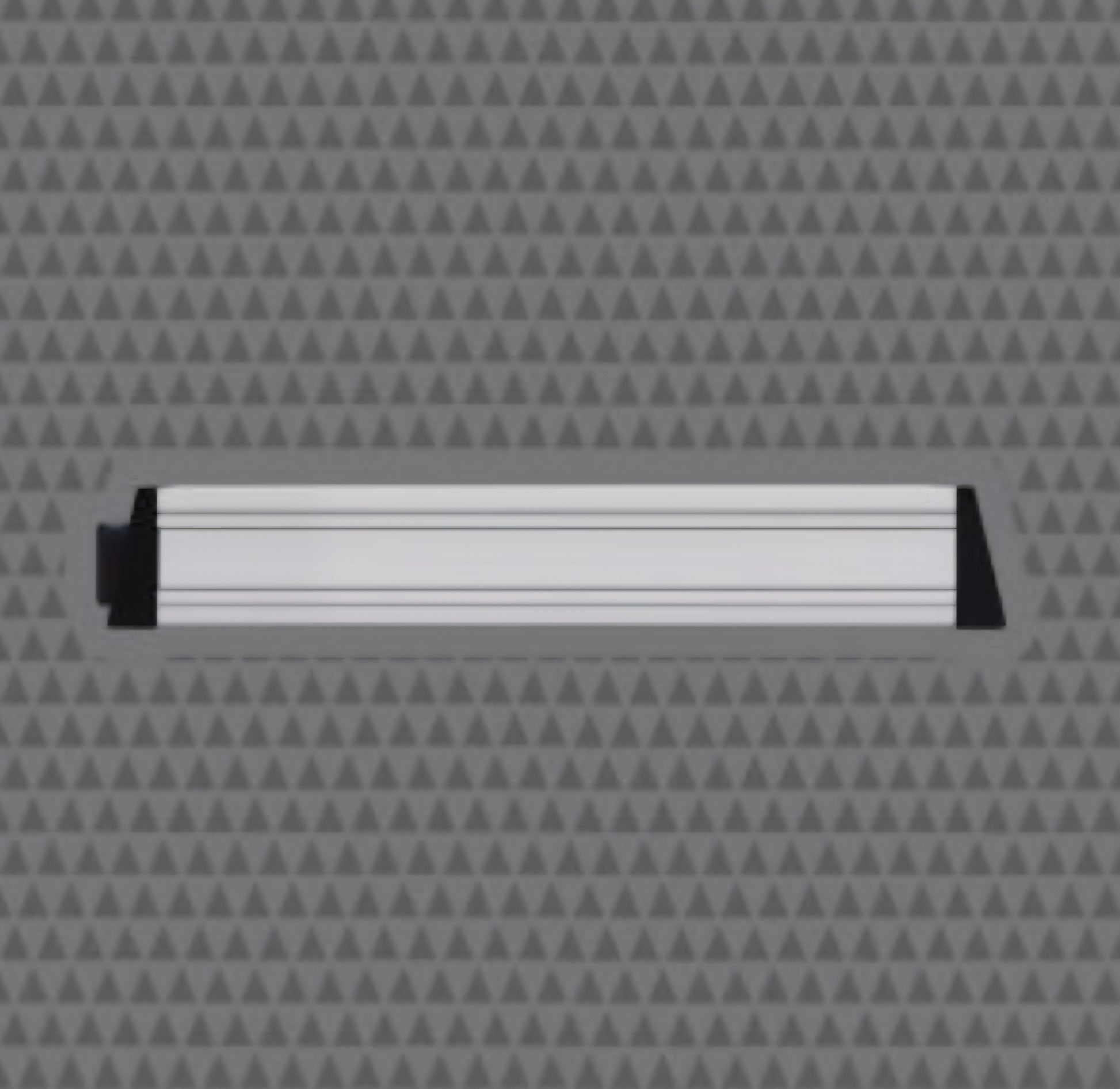

CICADA AUDIO 600D DSP

4 X 70 WRMS into 4 ohms @ 12.5 Vdc

4 X 92 WRMS into 4 ohms @ 14.4 Vdc

4 X 115 WRMS into 2 ohms @ 12.5 Vdc

4 X 152 WRMS into 2 ohms @ 14.4 Vdc

BRIDGED MONO – 2 CHANNEL

2 X 218 WRMS into 4 ohms @ 12.5 Vdc

2 X 300 WRMS into 4 ohms @ 14.4 Vdc

Frequency response – 20-20,000 +/- 3dB THD < 0.5%

Operating Voltage: 8V – 16V

Current Draw (Music): 40 A

Current Draw (Max): 80 A

Recommended Fuse (Music): 40 A

Total Efficiency: 79%

Damping Factor: 200

SNR: 91dB

DSP Crossover HPF/LPF: 0 TO 20kHz

Slope configurable 6/12/18/24/48dB

DSP PEQ – 8 BANDS

Q’s Adjustable from 0.05 – 20

THD + N (10% Rated Power): 0.1%

Product Dimensions (Inches / Millimeters): 8.875 x 4.0 x 1.4 in / 225.4 x 103 x 36 mm
