BEYMA PRO6CFND

Beyma PRO6CFND

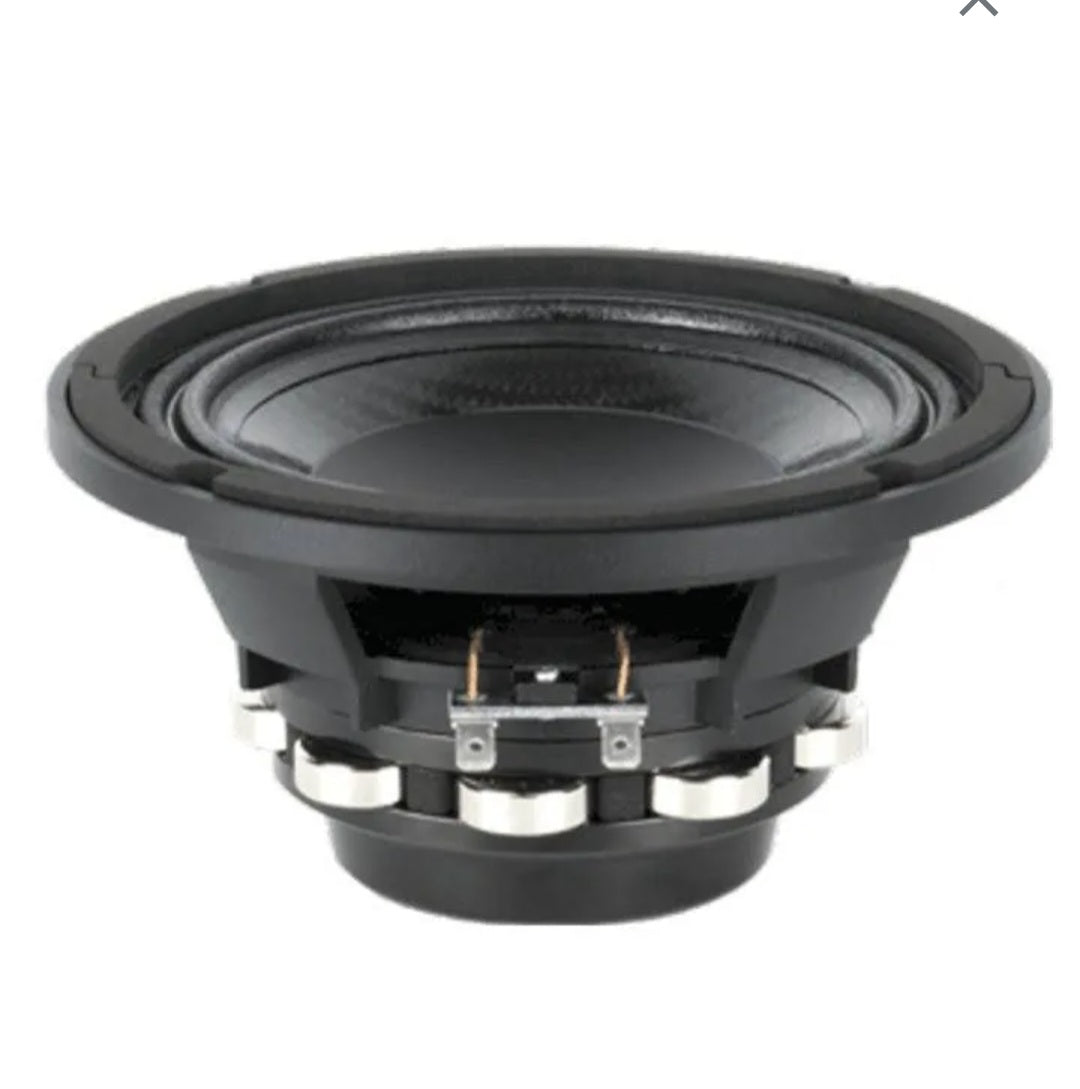

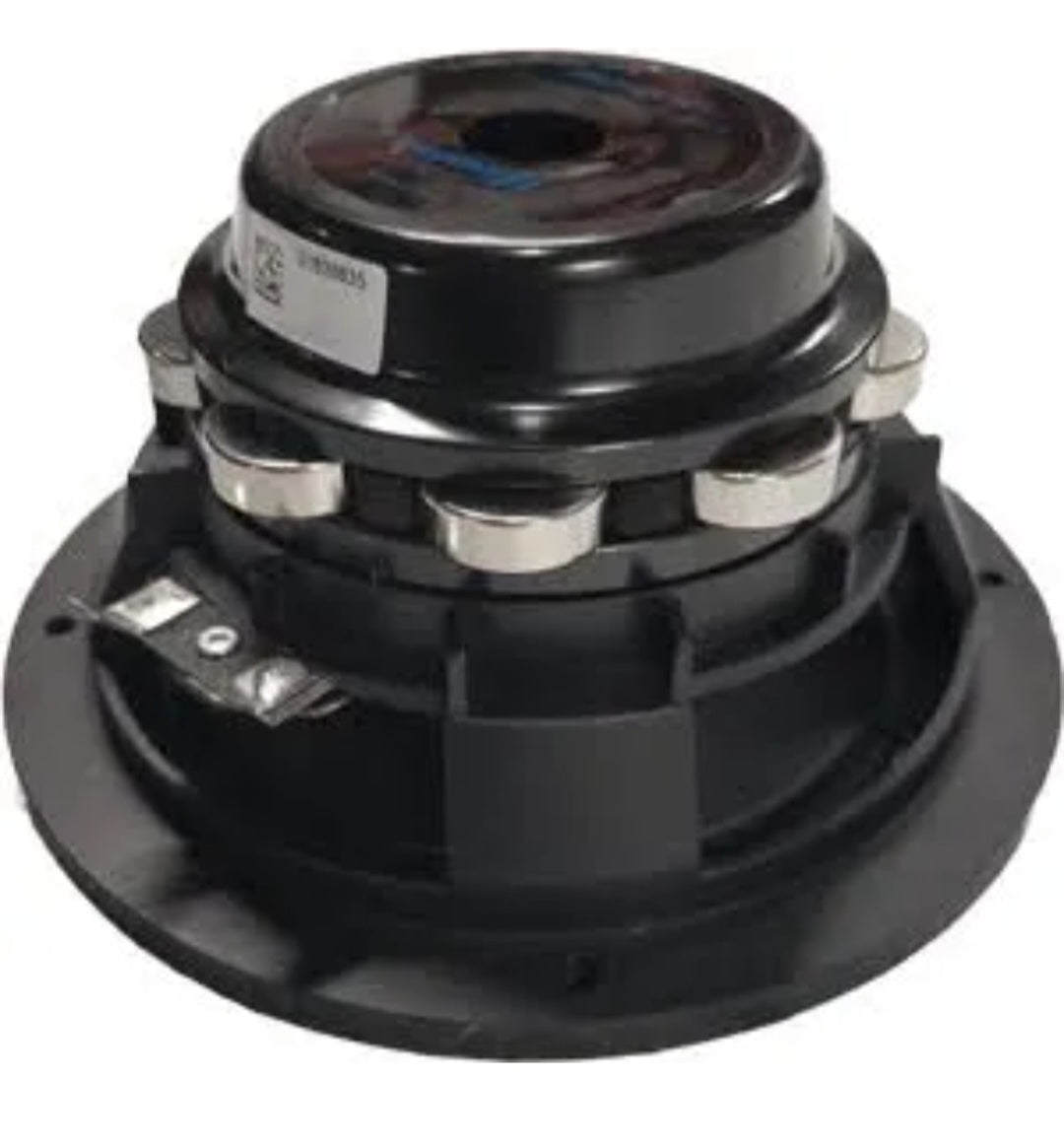

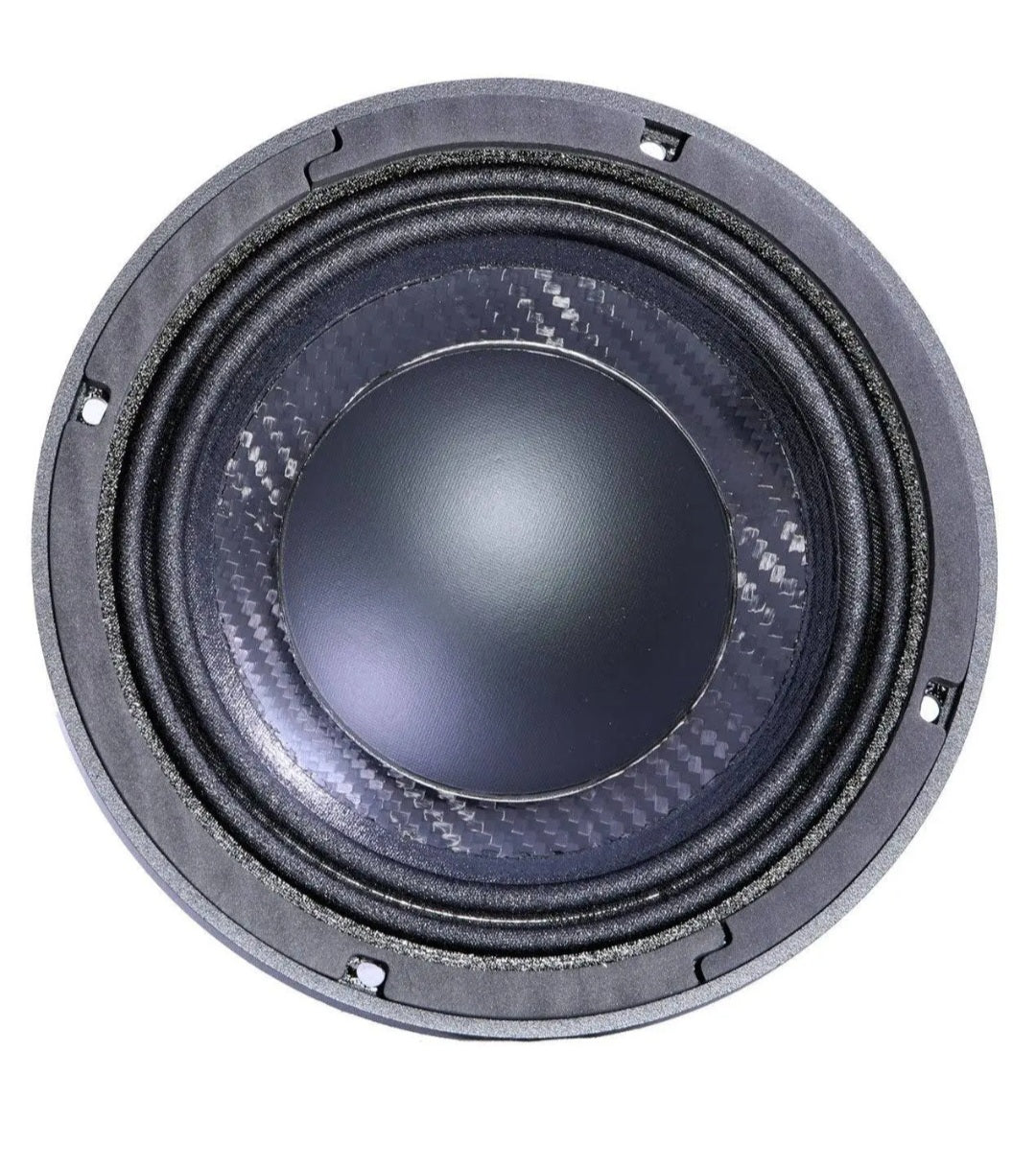

6.5" Pro Neodymium Extended Range Speaker

(Sold in Singles)

THE BEYMA PRO6CFNd COVERS A WIDE FREQUENCY RANGE WITH GOOD POWER HANDLING OF 400 WATTS PROGRAM!

New BEYMA PRO6CFNd 6.5" EXTENDED RANGE SPEAKER HANDLES 200 WATTS AES & 400 WATTS PROGRAM POWER HANDLING

FEATURES A CARBON FIBER CONE FOR INCREASED CONE STRENGTH & MARINE-TREATED PARTS

WIDE FREQUENCY RANGE FROM 95HZ TO 11.2KHZ & HIGH XMAX OF 6.0MM

ACOUSTICALLY BALANCED FREQUENCY RESPONSE & INVERTED DUST CAP

LIGHTWEIGHT NEODYMIUM MAGNET WEIGHS ONLY 4.2 LBS.

DESIGNED TO PLAY UPPER BASS, MIDRANGE, AND HIGH FREQUENCIES UP TO 11.2KHZ

AVAILABLE IN 8 OHMS

Specifications

Nominal Basket Diameter

6.5" / 165mm

Impedance

5 ohms

AES Power Rating

200 Watts

Program Power 400 Watts

Frequency Response

95Hz - 11.2KHz

Sensitivity (1W/1m)

93dB

Voice Coil Diameter

2" / 50.8mm

Voice Coil Length 14mm

Air Gap Height 7mm

X Damage (peak to peak) 20mm

Bl Factor (BL) 11.1 N/A

Mounting Information

Overall Diameter 6.8" / 174mm

Bolt Circle Diameter 6.2" / 158mm

Baffle Cutout Diameter-

- Front Mount 5.7" / 145mm

No. Of Mounting Holes 4

Overall Depth 3.8" / 96mm

Net Weight 4.2 lb. / 1.9 kg.

Shipping Weight 4.4 lb. / 2.0 kg.

Materials

Basket Die Cast Aluminum

Cone Carbon Fiber

Surround Treated Cloth

Dust Cap Shape Inverted

Voice Coil Copper

Former Fiberglass

Metal Parts Marine Treated

Magnet Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 94 Hz

Impedance (Re) 4.8 ohms

Coil Inductance (Le) .2 mH

Mechanical Q (Qms) 3.8

Electrical Factor (Qes) .43

Total Q (Qts) .39

Comp. Equivalent Vol. (Vas) .14 ft3 / 3.9Liters

Voice Coil Overhang (Xmax) 6.0 mm

Surface Area of Cone (Sd)m2 0.014m2

Moving Mass (Mms) 19 Grams

Reference Efficiency .7%

Displacement Volume 74 cm3
